The Workflow Scheduler Service

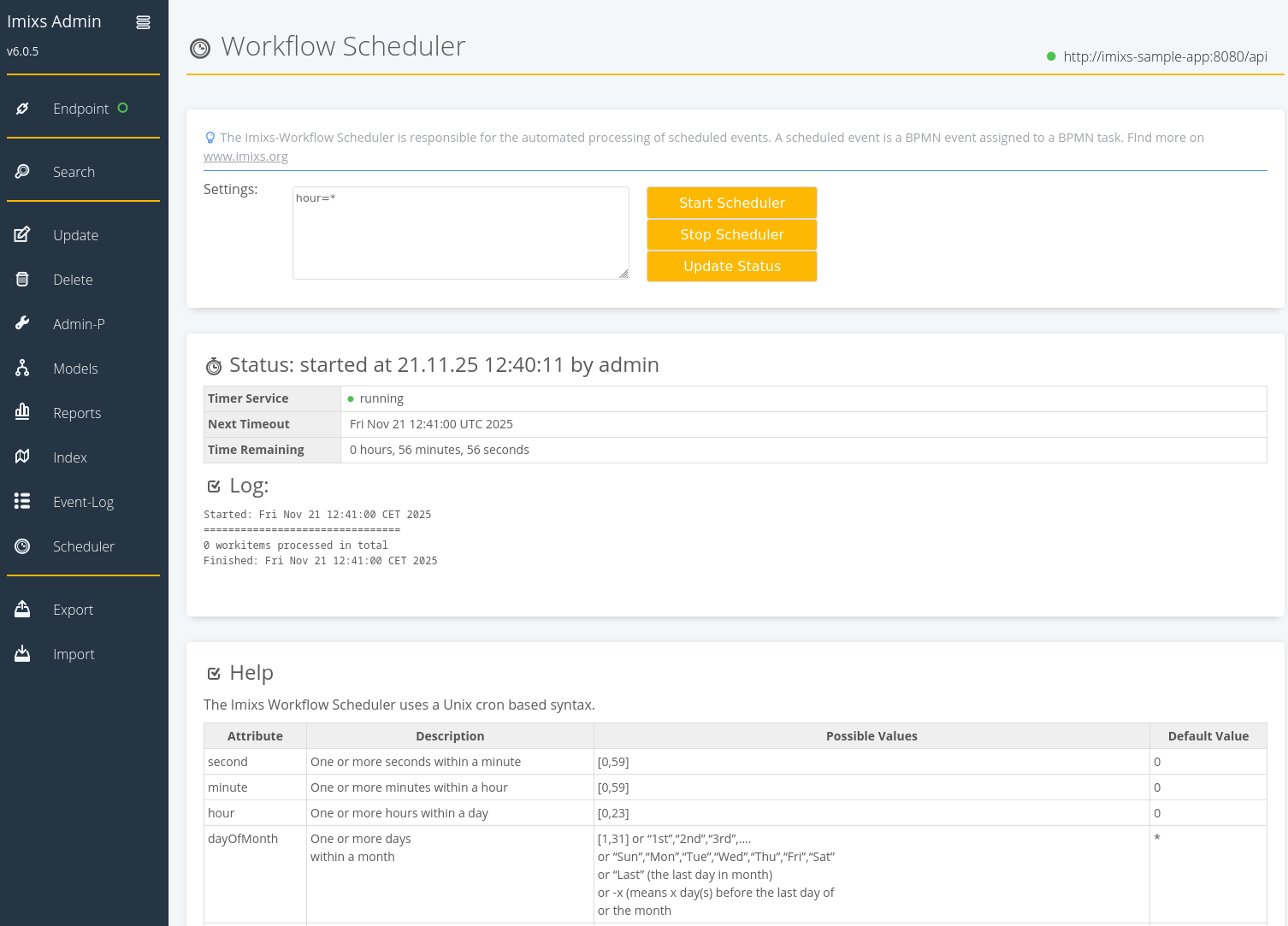

The resource /scheduler provides methods to control the Imixs Workflow Scheduler service. The workflow Scheduler can be monitored with the Imixs-Admin Client.

GET Jobs

The GET method is used to read all running ore completed jobs:

URI Method Description
/scheduler/{name} GET returns the scheduler configurration by name (e.g. org.imixs.workflow.scheduler)

A scheduler configuration is defined by the following item definitions:

<document xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xs="http://www.w3.org/2001/XMLSchema">
    <item name="type">
        <value xsi:type="xs:string">scheduler</value>
    </item>
    <item name="name">
        <value xsi:type="xs:string">org.imixs.workflow.scheduler</value>
    </item>
    <item name="_scheduler_class">
        <value xsi:type="xs:string">org.imixs.workflow.engine.WorkflowScheduler</value>
    </item>
    <item name="_scheduler_definition">
        <value xsi:type="xs:string">hour=*</value>
        <value xsi:type="xs:string">minute=30</value>
    </item>
    <item name="_scheduler_enabled">
        <value xsi:type="xs:boolean">true</value>
    </item>
</document>

POST a new Configuration

The methods POST allow to update/create a scheduler configuration. Depending on the flag _scheduler_enabled the scheduler will be started or stopped :

URI Method Description
/scheduler/ POST posts a scheduler configuration. The post data is expected in xml format

The following curl example shows how to update a scheduler configuration:

curl --user admin:adminpassword -H "Content-Type: text/xml" -d \
  '<document xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xs="http://www.w3.org/2001/	XMLSchema"> \
   <item name="type"><value xsi:type="xs:string">scheduler</value></item> \
   <item name="name"><value xsi:type="xs:string">org.imixs.workflow.scheduler</value></item> \
   <item name="_scheduler_class"><value xsi:type="xs:string">org.imixs.workflow.engine.WorkflowScheduler</value></item> \
   <item name="_scheduler_definition"><value xsi:type="xs:string">hour=*</value></item> \
   <item name="_scheduler_enabled"><value xsi:type="xs:boolean">true</value></item> \
</document>' \
http://localhost:8080/api/adminp/jobs

In case the scheduler definition is not valid the attribute ‘$error_code’ will be returned in the response.
